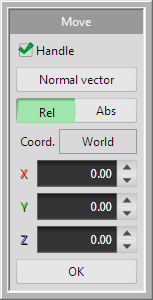

Move
- Handle
-
It shows three arrows along with X/Y/Z axes, and you can move along with X/Y/Z axes with
dragging.When you
click the top of the arrow (red, green or blue part), you can input an amount to move.
When you
drag the handle with Ctrl + Shift key, you can change the direction of the handle.
And you can input a rotation angle byclicking a red, green, blue or cyan ring.
- Normal vector
- Selected vertices, lines and faces are move to the normal direction by dragging the handle.
- Rel (Relative)
- The numeric input column indicates the offset of movement from the current vertex/line/face.
- Abs (Absolute)
- The numeric input column indicates the position.
- Coord.(Coordinates)
- It displays whether the numeric input column displays in the world coordinate or the local coordinate.
When a right button is
clicked while moving a vertex, the vertex is joined to the closest vertex. The dragged vertex is not joined and is arranged at the same position if the closest vertex is in the other object.
 |
 |
 |
|
 |
| Original | While moving the vertices by dragging, | the dragged vertex will be merged to the nearest vertex by clicking a right button with pressing a left button |
