Morph

It is the function of deforming the object to the form of another object.

If you use file format that supports to morph information, you can exchange the morph setting with other software.

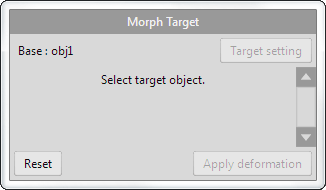

Base

This is the object that is the base of deformation.

Object that is currently selected in [Object panel] is specified.

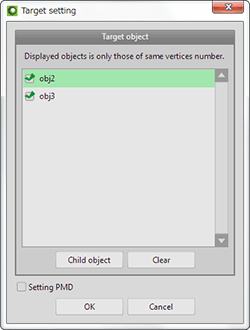

Target setting

Select the object as a modified target.

Only the object number of vertices is equal to the base appears in the list. Check the object you want to set the target object, and press [OK]. Then, the target is set.

Child object
When you click this button, all child objects of the base are selected.
Setting PMD
Check it and press [OK], You can set the display frame for PMD file. (About Setting PMD)

Morphing

obj1

First, you set the object (obj1) in the left view as a base object.

obj2 obj3

Copy the base object and edit. These objects (obj2, 3) contain a number of vertices equal to the base object, but the shape is different. Set them to the target.

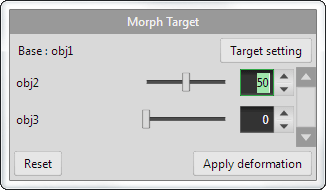

Deformation
As you move the slider of the target object to the right, and the shape of the base is closer to the shape of the target.
0 25 50 75 100
Synthesize the deformation
Move multiple slider, you can synthesize the deformation.
obj2: 50 and obj3: 50
Edit vertices of the target object
When you select the object that is set to the target on [Object panel], the target on [Morph target] panel is highlighted.
If the value of the selected target slider is 1 or more, you can move the vertices of the target object while you set the morph.
Position of the edited vertex in morphing are auto-completion by the amount of movement of the slider.
Move vertex
when obj2: 50		   Complement the vertex position
when obj2: 100
Reset
The value of all slider resets to 0
Apply deformation
The current deformation result created as a new object.

*When deforming the morph, the setting of [Patch] or [Mirroring] is ignored.

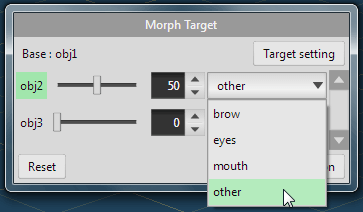

Setting PMD

Only when you check [Setting PMD] in [Target setting], you can set the display frame for PMD file.

Select [brow] or [eyes] or [mouth] or [other] from the list for each the target. When you save the data in the PMD format, morph is added to each item of setting panel on the MikuMikuDance.

If you do not set these, morph is set to [other].

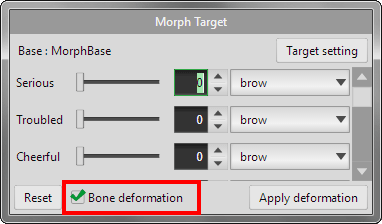

Bone deformation

This item will be displayed only when the bones has been set for objects.

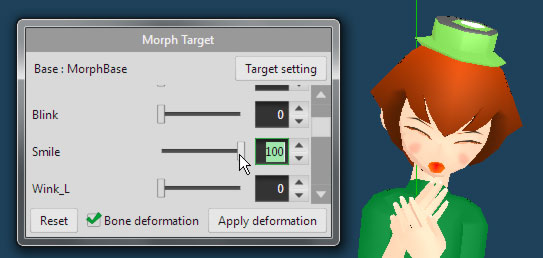

When this is checked, the object is deformed to the pose created in skinning mode of [Bone].

Creating a pose in [Bone]
You can set morphing with a created pose.
