Panel

It sets up showing or hiding of each panel.

When you mousedrag a title of each panel and move to the edge of the main window, the panel will dock to the main window. When you press Ctrl key, the panel will not dock. You can specify whether to the panel can dock or not by mouseright-click menu on the title bar in each panel.

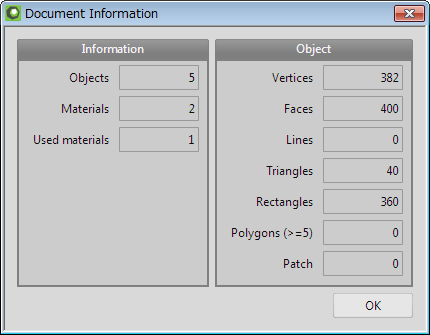

Document Information

It displays a document's and objects' information.

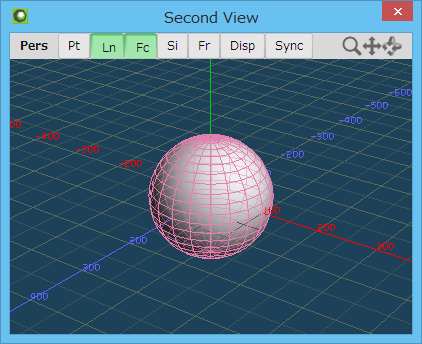

Second View (for EX edition)

It opens an other window and display a view in the window.

It is effective for multiple monitors.

Paint Panel

It shows the panel for editing mapping images. [Details]

Script Editor (for Standard/EX editions)

It shows the display for editing Python script. [Details]

Object Panel

It selects the current object, sets up visibility and editing, and shows the panel for setting up details on objects. [Details]

Material Panel

It selects the current material and shows the panel for setting up details on material. [Details]

Tool Panel

It displays a panel for registering buttons, menus and scripts.

Register to Tool Panel
Buttons and menus in the main window can be registered to the Tool Panel by mouseright-click menu on them. And scripts can be registered in [File > Register to Tool Panel] in the Script Panel.
Execute
The command is executed by mouseclicking the button.
Edit/Delete
The button can be edited or be deleted in the mouseright-click menu.
Change positions
The position of the button can be changed by mousedragging on it.

Edit Panel

It can operate the selected part on each axis without using [Move] [Scale] [Rotate] command.

You can scale up and down in the equal ratio with mousedragging on an icon.

The picture rotates by 15 degrees at a time while you press the shift key.

Command Panel

It switches showing or hiding of Command Panel on the left side (or the right side) of the screen.
